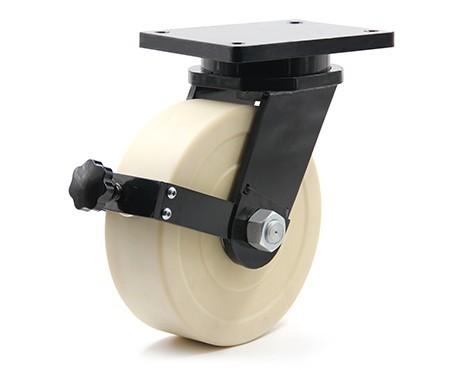

fixed rigid flange nylon caster wheels outdoor Industrial casters KT-PH100-300

How to install caster universal wheel correctly
Correct installation of casters, can make the equipment handling and moving objects become

much easier, but different casters installation combination, will have different influence on the

mobile performance of the equipment, Beijing Hanke casters on the following several more

common casters installation method, provide the relevant function introduction.

Caster wheel bearing calculation formula
In order to be able to calculate the load capacity required by the various casters, it is necessary

to know the dead weight of the transport equipment, the maximum load and the number of single

and casters used. The load energy required for a single wheel or caster is as follows:

T = < > (E + Z)/M (N
--T = the load of a single wheel or caster;
--E = dead weight of transportation equipment;
--Z= maximum load;
--M= number of single wheels and casters used;
--N= Safety factor (about 1.3 -- 1.5) Generally, the safety factor can be roughly calculated

according to the following parameters
Manual conveying in indoor area (obstacle height < 5% of wheel diameter) Safety factor: 1.0 to 1.5
Manual conveying in outdoor area (obstacle height > 5% of wheel diameter) safety factor: 1.5 to 2.2
Motorized conveying in indoor area (obstacle height < 5% of wheel diameter) safety factor: 1.4 to 2.2
Motorized conveying in outdoor area: safety factor: 2.0 to 3.0

The factor of safety does not take into account the wear of the tread.

1. Install 3 casters, including 1 universal wheel and 2 directional wheels
The installation combination of 1 universal wheel and 2 directional wheels is suitable for

short-distance handling of low center of gravity, medium and light equipment, with good

direction control and economy.

2. Install 4 casters, including 2 universal wheels and 2 directional wheels
The combination of two universal wheels and two directional wheels is a conventional assembly

method. The front two directional wheels and the back two movable universal wheels close to the

pushing handrail are suitable for the long and short distance handling of heavy equipment, which

is economical and durable.

Install 4 casters, all of which are directional wheels
The four directional wheels are designed with a rhomboidal layout, which is suitable for long

straight distance handling of heavy equipment, but not for sloping working face.

3.Install 4 casters, including 2 directional wheels and 2 universal brake wheels
The installation method of two universal belt brake wheels and two directional wheels, the front

two directional wheels and the rear two universal belt brake wheels close to the push handrail,

this assembly is suitable for long distance and slope road.

4.Install 4 casters, all of which are universal wheels
The installation mode of 4 universal wheels is suitable for the short distance handling of heavy

equipment, with excellent directionality, and is often used in the factory workshop turnover work car.
Install 6 casters, including 4 universal wheels and 2 directional wheels

4 universal wheels and 2 directional wheels are suitable for heavy equipment and household table

long distance handling, good handling, used for horizontal contact surface.

Universal Caster Wheels Parameter

Universal Caster Wheels Describe

Universal Caster Wheels Size

Universal Caster Wheels Material

Universal Caster Wheels Scope of application

Application.
