What performance parameters should you pay
attention to when selecting casters?
Casters have many performance parameters, which are also important
indicators when selecting
casters. Let's take a look at them one by one.
1. Adhesive force
The force required to peel the tire from the bonded wheel core at a
speed of 6 inches per minute is
calculated in pounds divided by the linear width of the tire.
2. Tensile strength
The force required when the wheel breaks from the cross section. In
pounds divided by the area of
the cross-section of the sample (square inches).
3. Elongation
Under the action of tensile force, the ratio of the increase in the
distance between markings to the
initial gauge distance when the sample is broken is expressed as a
percentage.
4. Impact strength
The ability of materials to withstand the violent impact imposed by
free falling heavy objects. It is
expressed in inches / pounds, feet / pounds or stamping work at
test temperature.
5. Deformation resistance under heavy pressure
Under heavy load for a long time, the wheel landing position
becomes larger and flattened, that is,
the test sample bears a certain static pressure load, and then the
load is removed after the specified
compression time. The percentage of the height of the wheel after
landing position change compared
with the original height.
6. Water absorption
Increase in the weight of the test sample. It is expressed as a
percentage of the weight of the sample
after being tested by a specific procedure and the initial weight.
7. Operating temperature
Operating temperature range measured at rated load.
8. Hardness
It is used to measure the hardness of rubber and other tire and
wheel core materials, expressed by
shore "a" or "d". Compressive strength the maximum compressive
stress borne by the specimen during
the compression test, in megapascals.

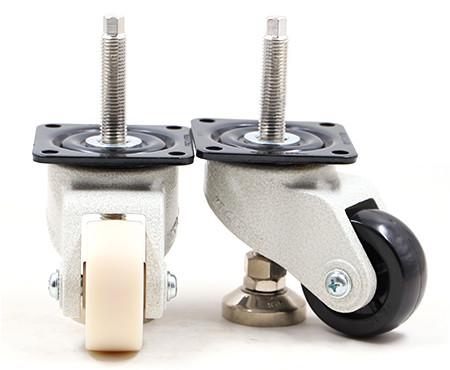

AGV Casters Parameter
| model | KT-AD-700F-U |
| Net weight | 1.45KG |
| Single bearing | 600KG |
| Four load bearing | 1800KG |
| texture of material | polyurethane |
| type | Flange |
| Load Height | 103.5+60MM |
AGV Casters Describe
AGV Casters Size
AGV Casters Material
| Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
AGV Casters Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display
manufacturing equipment,
conveyor belt, etc.
