Selection of industrial castors
1. Wheel rotation flexibility: the larger the single wheel, the
more labor-saving it will be when rotating.
The needle roller bearing can carry heavier load and has greater
resistance when rotating; The
single wheel is equipped with high-quality ball bearing, which can
carry heavy load, and the rotation
is more light, flexible and quiet.
2. First, choose the appropriate wheel materials: generally nylon,
rubber, polyurethane, elastic rubber,
iron core coated polyurethane, cast iron, plastic and other
materials. Different materials can be
selected according to different use environments!
3. Suitable caster support: the weight of casters should be
considered in the selection of support.
The electroplated wheel frame made of 3-4mm thin steel plate is
light, flexible, quiet and beautiful,
which is suitable for light cargo handling environments such as
supermarkets, schools, hospitals,
office buildings and hotels;, The wheel frame of double row balls
stamped, hot forged and welded
with 5-6 mm thick steel plate is suitable for factories, warehouses
and other places; The wheel
frame is made of 8-12mm thick steel plate cut and welded, which is
suitable for places such as
textile factory, automobile factory and machinery factory to carry
heavy objects.
4. Bearing weight of casters: when selecting casters, you must know
the self weight of transportation
equipment, maximum load and the number of casters used. There is a
special formula for calculating
the bearing weight of casters. Strong casters teach you a simple
calculation method. 4 casters
calculate the bearing capacity of 3 casters. Because at any time,
there are always three wheels
landing at the same time.
5. Diameter of casters: Generally speaking, the larger the diameter
of the wheel, the easier it is to
push, and the greater the load capacity, which can better protect
the ground from damage. The
selection of wheel diameter should be determined by the load and
the starting thrust of the carrier
under load.
6. Temperature condition of products: the applicable environment of
severe cold and high temperature
has a great impact on casters. Select different materials according
to different use environments.
Universal Caster Wheels Parameter
| Wheel material | PA6 |
| Load Capacity | 140KG |
| Wheel Diameter | 50MM |
| Color | white |
| purpose | Aluminum frame |
| Tread Width | 22mm |
| Load Height | 75+10MM |
Universal Caster Wheels Describe
Universal Caster Wheels Size

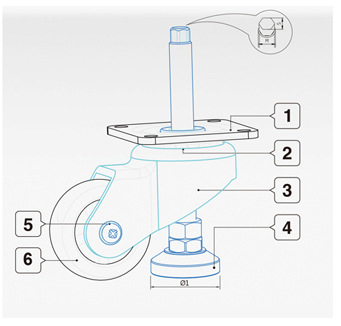

Universal Caster Wheels Material
| Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
Universal Caster Wheels Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display
manufacturing equipment,
conveyor belt, etc.
