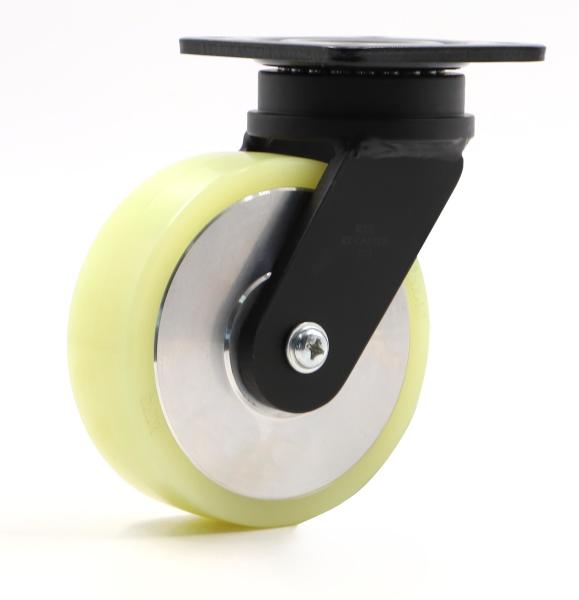

fixed rigid flange nylon caster wheels outdoor Industrial casters
KT-PH40-150
How to choose the right caster bearing?
Ball bearing needle roller bearing conical bearing plane bearing
ball bearing needle roller bearing
conical bearing plane bearing
The selection of caster bearings must be clear to the buyer. There
are many kinds of bearings
usedin casters. Without it, casters will lose value. Therefore, we
suggest that the ideal bearing
should be suitable for their respective applications and ensure
that the necessary safety margin is
reserved. Inaddition to the wheel surface, wheel diameter and
rotating bearing, the wheel bearing
determines the mobility of the caster and even the quality of the
caster. The service environment is
very important for the selection of bearings. Different service
environments have different
requirements:Bearings are of the following types:
1. Needle roller bearings - in addition to wear-resistant and deep
groove ball bearings, this strong
anti-seismic bearing is mainly used for transportation equipment
casters. Compared with other
bearings,needle roller bearing is famous for its extremely low
installation height, relatively low rolling
resistance and huge load. The moving speed of the wheel equipped
with needle roller bearing shall
not exceed 4km/ h, which is close to the walking speed of people.
2. Tapered bearing - tapered bearing is one of the most important
components of roller bearing.
Compared with ordinary bearings, their special advantage is to
expand the field of use and provide
improved moving characteristics. It is generally applied to the
rotating part of casters.
3. Precision ball bearing - the single row radial precision ball
bearing with unique design and in line
with the German industry standard is the highest quality model in
the bearing. Wheels equipped with
these ball bearings can maintain extremely low rolling resistance
even when carrying the maximum
load.
4. Ordinary bearing - the simplest form of wheel bearing is sliding
or friction.. They are earthquake
resistant, almost maintenance free, and corrosion resistant based
on the characteristics of the
material. If the equipment only needs to move at a short distance
and low speed, we recommend
installing wheels with ordinary bearings.
5. Plane bearing and conical bearing: suitable for casters with
high and ultra-high load, high speed
and anti-collision requirements.
6. Thrust bearing, namely thrust bearing, is generally composed of
two or more thrust gaskets and
several rolling elements. Generally, the thrust gasket is divided
into shaft plate and seat plate.
Generally, the most common type of rolling element is composed of
iron or copper cage. The most
common type of bearing is steel ball thrust bearing.
In practice, the selection of high-quality bearings is the core of
caster design and assembly. Hanke
castors adhere to the belief that quality wins, adhere to the
selection of high-quality and high-quality
bearings, and control the quality of good castors. Being an
enterprise that reassures users is our
constant pursuit.
Polyurethane Swivel Casters Parameter
| model | KT-PH40-150 |
| Wheel material | MC Nylon |
| Load Capacity | 800KG |
| Wheel Diameter | 150mm |
| Tread Width | 40mm |
| Load Height | 188MM |
Polyurethane Swivel Casters Describe
Polyurethane Swivel Casters Size
Polyurethane Swivel Casters Material
| Name | Material | Treatment |
| 1 | Caster Seat | Steel 45 | Black Coated |
| 2 | Body | Steel 45 | Black Coated |
| 3 | Wheel | Polyurethane + AL/Mc Nylon | - |
Polyurethane Swivel Casters Scope of application
Application.
Suitable for equipment with height limitation, all kinds of
mechanical equipment, all
kinds of transport vehicles.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007.
KTC is a modern
company specialzingin the production of multi function &high
quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi
District, Beijing. KTC
adopts international advanced production testing equipments,
professional intelligent
production management system and professional design flow. Now the
company produces
multi function & high quality production, such as KT CASTER and KT
FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER,
high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level
adjusting FOOT
are widely used in the world's advanced automation equipment and
semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC
use the best processing
technology and equipment. And KTC continuously launches world top
level of new products.
KTC's s also has set up a branch in Korea, so it is favored by
theusers of various fields around
the world.
