Identification method of castor material
Castors can be divided into super artificial rubber castors,
polyurethane castors, plastic castors,
nylon castors, steel castors, high temperature resistant castors,
rubber castors, S-type artificial
castors, etc. Many customers don't know much about casters. When
purchasing, many small
processing plants without R & D ability specially imitate
the color and appearance of some brand
products, use defective materials and some fake materials to shoddy
and confuse fish with pearls,
disrupt the market with very low prices, resulting in unnecessary
purchase. How can we solve this
problem? This paper introduces a simple identification method -
"combustion method" for several
common materials of industrial castors, which identifies the
materials according to the flame, smoke
smell and ash after combustion:
(1) Nylon castors: not easy to burn. When burning, there is the
smell of hair burning. After burning,
the surface is bubbly and sticky.
(2) PVC casters: easy to burn, with thick black smoke and pungent
smell during combustion. The
universal wheel has no sticky filaments, and the burned surface is
black toner.
(3) High temperature Nylon Caster: the combustion condition is the
same as that of PA material, but
there is white powder on the surface after burning.
(4) Polypropylene castors: easy to burn, with a slight plastic
smell. When burning, the surface melts
evenly and has sticky filaments.
(5) Polyurethane castors: universal wheels are easy to burn, with
light white smoke when burning,
easy to melt, no pungent smell and sticky filaments.

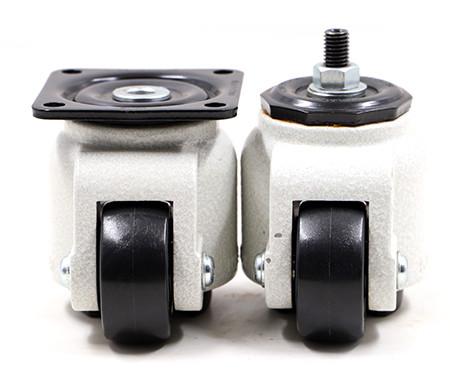

Outdoor Caster Wheels Parameter
| Wheel material | Mc Nylon |
| Load Capacity | 1000KG |
| Wheel Diameter | 92mm |
| Color | white |
| purpose | Display manufacturing equipment |
| Tread Width | 55mm |
| Load Height | 131+15MM |
Outdoor Caster Wheels Describe
Outdoor Caster Wheels Material
| Product | Material | Treatment |
| 1 | Caster Seat | SPC&SC | Black Coated/ZN Galvanized |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Handle | 40-100 | PA6 | Red |
| 120-150 | S45C | Zn Galvanized |
| 5 | Rod | Swrch10A | Zn Galvanized |
| 6 | Pad | 40-100 | NBR | Black |
| 120 | PA6 |
| 150 | ALDC12 |
| 7 | Wheel | 40-120 | PA6 | Black |
| 150 | Mc Nylon | Ivory |
This wheel master have the advantage of making it easy to remote in
a 360 degree are by putting and
in the ball bearing between upper plate and main body, also get a
change of direction and move easy.
Outdoor Caster Wheels Size
Outdoor Caster Wheels Scope of application
Function.
A Function improves and who can make height regulation easy by
small power so that a
hand ans a spanner may be freely used for the facilties of use.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007.
KTC is a modern
company specialzingin the production of multi function &high
quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi
District, Beijing. KTC
adopts international advanced production testing equipments,
professional intelligent
production management system and professional design flow. Now the
company produces
multi function & high quality production, such as KT CASTER and KT
FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER,
high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level
adjusting FOOT
are widely used in the world's advanced automation equipment and
semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC
use the best processing
technology and equipment. And KTC continuously launches world top
level of new products.
KTC's s also has set up a branch in Korea, so it is favored by
theusers of various fields around
the world.
