How to maintain the single wheel of casters
Users should operate properly and do not overload. When the goods
are heavy, put them on the
vehicle with care. High speed driving on rough roads or heavy
objects hitting the wheels will cause
damage to the wheels or equipment. Therefore, check regularly
Industrial casters usually refer to a kind of caster products used
in mechanical equipment or factories.
Industrial casters can be single wheels made of reinforced nylon
(PA6), super polyurethane and
rubber. Industrial casters have high impact resistance and strength
as a whole.
tighten the loose axle and nut and check whether the support is
twisted.
Overload or impact will distort the support. The distorted support
will tilt and press the heavy load on
individual wheels, resulting in premature wheel damage. The casters
of plug-in rod type shall be
tightened with nuts or riveted firmly, and ensure that the
equipment installation support is not bent
and the plug-in rod is installed correctly. When installing
castors, use locknuts or lock washers. The
expansion plug rod caster shall ensure that the plug rod is firmly
installed in the casing.
Lubrication: add lubricating oil regularly (usually every six
months) to ensure that the wheels and
movable bearings can be used for a long time. Apply grease to the
friction parts in the sealing ring,
axle and roller bearing to reduce friction and make rotation more
flexible. After cleaning the car,
lubricate the wheels.
Wheel: observe the wear of the wheel. Whether the wheel rotates
smoothly is usually related to
sundries such as rope. Adding anti winding cover can prevent the
winding of these sundries. After
checking and replacing the wheel, tighten the axle with a jam nut.
Loose axle can cause friction and
jamming between wheel width and support.
Casters: if the movable steering is too loose, replace it
immediately. If the caster center rivet is fixed
by a nut, the nut must be locked firmly. If the steering is not
flexible, check whether there is foreign
matter or corrosion at the ball. If a fixed caster is installed,
ensure that the caster support is not bent.

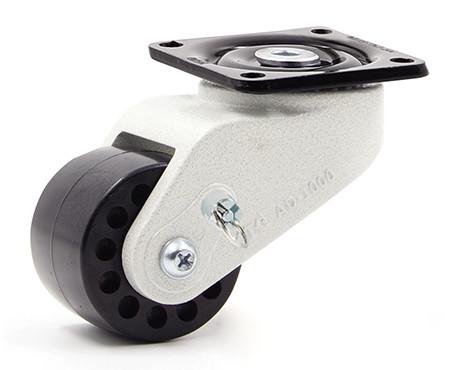

AGV Casters Parameter
| model | KT-AD1-1000FB-U |
| Net weight | 1.49KG |
| Single bearing | 800KG |
| Four load bearing | 2400KG |
| texture of material | polyurethane |
| type | Flange Brake |
| Load Height | 110MM |
AGV Casters Describe
AGV Casters Size
AGV Casters Material
| Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
AGV Casters Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display
manufacturing equipment,
conveyor belt, etc.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007.
KTC is a modern
company specialzingin the production of multi function &high
quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi
District, Beijing. KTC
adopts international advanced production testing equipments,
professional intelligent
production management system and professional design flow. Now the
company produces
multi function & high quality production, such as KT CASTER and KT
FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER,
high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level
adjusting FOOT
are widely used in the world's advanced automation equipment and
semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC
use the best processing
technology and equipment. And KTC continuously launches world top
level of new products.
KTC's s also has set up a branch in Korea, so it is favored by
theusers of various fields around
the world.
