How to select appropriate industrial castors
How to choose proper caster products is a problem for laymen. Here,
Beijing Hanke casters will answer
for you:
1. First, select the appropriate castor wheel material:
Generally, the wheels are made of PA6 nylon, MC cast nylon, rubber,
polyurethane, plastic, etc.
Polyurethane wheels can meet the requirements of your handling
without damaging the ground whether
driving on the indoor or outdoor ground; Elastic rubber wheels can
be used in hotels, medical devices,
wooden floors, ceramic tile floors and other places that require
low noise and quiet when walking; M
nylon wheel is suitable for sites with uneven ground or iron
filings on the ground.
2 how to correctly select the caster bracket:
Generally, the appropriate caster support is selected. First, the
weight of casters is considered, from
light (30kg ~ 200kg), medium heavy (200 ~ 2000kg), heavy (2t ~
11T), and then the corresponding
caster diameter is selected. Supermarkets, schools, hospitals,
office buildings, hotels and other places
can also be selected from the application of casters. Due to the
good ground, smooth and light handling
goods (each caster carries 50-150kg), it is suitable to select the
electroplating wheel frame stamped with
3-4mm thin steel plate. Its wheel frame is light, flexible
operation, quiet and beautiful. The electroplating
wheel frame is divided into double row beads and single row beads
according to the arrangement of balls,
If it is often moved or handled, double row beads shall be applied;
In factories, warehouses and other
places, if the goods are transported frequently and the load is
heavy (each caster carries 150-680kg),
the wheel frame with double row balls stamped, hot forged and
welded with 5-6mm thick steel plate is
suitable; If it is used to carry heavy objects, such as textile
factories, automobile factories, machinery
factories and other places, due to the heavy
load and long walking distance (each caster carries 700-2500kg),
the wheel frame welded after cutting
with 8-12mm thick steel plate shall be selected. The movable wheel
frame uses flat ball bearings and ball
bearingson the base plate, so that the casters can bear heavy load,
rotate flexibly and resist impact.
3 how to calculate the bearing weight of casters:
In order to calculate the required load capacity of various
castors, it is necessary to know the self weight
of transportation equipment, the maximum load and the number of
single wheels and castors used. The
required load capacity of a single wheel or caster is calculated as
follows: T = (E + Z) / mxn: T = the
required load capacity of a single wheel or caster; E = self weight
of transport equipment; Z = maximum
load; M = number of single wheelsand casters used; N = safety
factor (about 1.3-1.5).Select the diameter
and size of casters:Generally, the larger the wheel diameter, the
easier it is to push, the greater the load
capacity, and the better it can protect the ground from damage. The
selection of wheel diameter should
first consider the weight and starting thrust of the carrier under
load.
4. Keep the wheel rotation flexibility:
The larger the single wheel is, the more labor-saving the rotation
is. The needle roller bearing can carry
heavier load and has greater resistance during rotation; The single
wheel is equipped with high-quality
ball bearing, which can carry heavy load, and the rotation is more
light, flexible and quiet.
5. Temperature condition of the product:
Cold and high-temperature occasions have a great impact on casters.
Conventional casters are applied
at - 100c-600c,and high-temperature resistant casters can rotate
easily at high temperature of 270 ℃.
Casters applied in this special environment must be customized
during procurement.

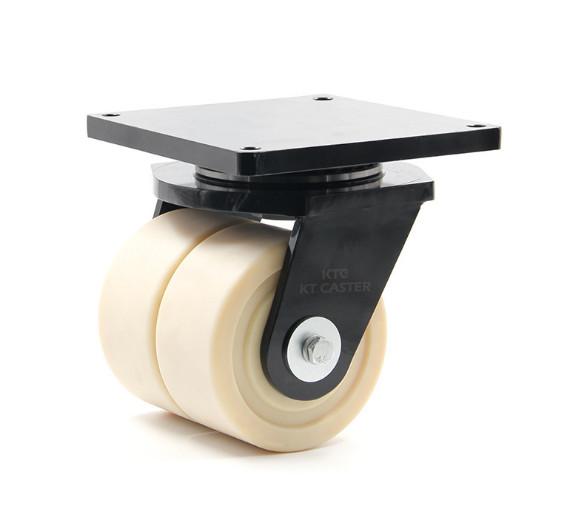

Outdoor Caster Wheels Parameter
| model | KT-PH100-250 |
| Wheel material | MC Nylon |
| Load Capacity | 8000KG |
| Wheel Diameter | 250mm |
| Tread Width | 100mm |
| Load Height | 330MM |
Outdoor Caster Wheels Describe
Outdoor Caster Wheels Size
Outdoor Caster Wheels Material
| Name | Material | Treatment |
| 1 | Caster Seat | Steel 45 | Black Coated |
| 2 | Body | Steel 45 | Black Coated |
| 3 | Wheel | Polyurethane + AL/Mc Nylon | - |
Outdoor Caster Wheels Scope of application
Application.
Suitable for equipment with height limitation, all kinds of
mechanical equipment, all
kinds of transport vehicles.
