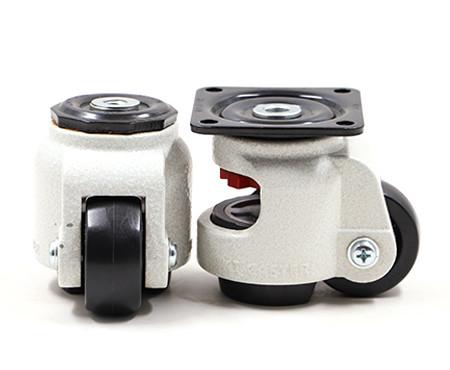

KT-A Adjust Caster Series
As for speed, the requirements for caster speed are: under normal
temperature environment, at no
higher than walking speed, on flat ground, there is a general use
condition of certain stop working
state. Caster diameter is less than 75mm, less than 2km / h, and
less than 100mm, less than 4km / h.
According to the specific equipment for installing casters,
determine the wheel diameter, material,
installation mode (such as plate mounted type, screw fixed type,
etc.) and the type of casters (such as
flexible rotation type, fixed type, stop type, etc.). In short, the
most suitable industrial casters should be
selected after full weighing according to the existing caster
varieties or optional types.
Outdoor Caster Wheels Parameter
| model | KT-A-40F-U |
| Net weight | 0.39KG |
| Single bearing | 35KG |
| Four load bearing | 100KG |
| texture of material | polyurethane |
| type | Flange |
Outdoor Caster Wheels Describe
Outdoor Caster Wheels Material
| Product | Material | Treatment |
| 1 | Caster Seat | SPC&SC | Black Coated/ZN Galvanized |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Handle | 40-100 | PA6 | Red |
| 120-150 | S45C | Zn Galvanized |
| 5 | Rod | Swrch10A | Zn Galvanized |
| 6 | Pad | 40-100 | NBR | Black |
| 120 | PA6 |
| 150 | ALDC12 |
| 7 | Wheel | 40-120 | PA6 | Black |
| 150 | Mc Nylon | Ivory |
This wheel master have the advantage of making it easy to remote in
a 360 degree are by putting and
in the ball bearing between upper plate and main body, also get a
change of direction and move easy.
Outdoor Caster Wheels Size
Outdoor Caster Wheels Scope of application
Function.
A Function improves and who can make height regulation easy by
small power so that a
hand ans a spanner may be freely used for the facilties of use.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007.
KTC is a modern
company specialzingin the production of multi function &high
quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi
District, Beijing. KTC
adopts international advanced production testing equipments,
professional intelligent
production management system and professional design flow. Now the
company produces
multi function & high quality production, such as KT CASTER and KT
FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER,
high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level
adjusting FOOT
are widely used in the world's advanced automation equipment and
semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC
use the best processing
technology and equipment. And KTC continuously launches world top
level of new products.
KTC's s also has set up a branch in Korea, so it is favored by
theusers of various fields around
the world.
